Ring chain bucket elevator

  • Model : TH
  • Bucket Width: 160/200/250/315/400/500/630/800/1000mm
  • Bucket Running Speed: 1.2/1.4/1.5/1.6m/s

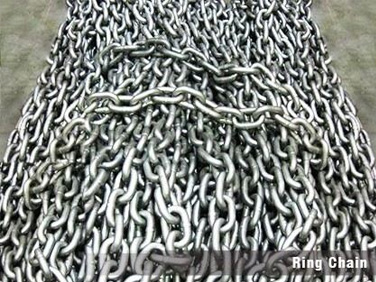

  • Traction Component: High strength ring chain
  • Capacity: 15-613m³/h
  • Max. Lifting height: 52m
  • TD bucket elevator
  • TD bucket elevator
  • TD bucket elevator
  • Ring chain bucket elevator manufacturer
  • Ring chain bucket elevator manufacturer
  • Ring chain bucket elevator supplier
Introduction
1. Structure features: high strength circular chain is used as the traction part.
2. Unloading features: the use of mixed or gravity type to unload
3.Material features:ρ<1.5t/m³,power,granular and small block,non-abrasive and semi-abrasive materials
4.Material’s temperature: the temperature of the material being transported is below 250℃
5. Lifting height: about 4.5~40m
6 .Capacity: 35~395m³/h

Working Principle and Application
Hopper scoops up materials from the stone bucket below, then is lifted to the top with the conveyor belt or chain, and next it is downward rolled over bypass the wheel on the top and the materials are dumped into the accept slot now by bucket chain or hoist conveyor, and the whole process is over. The driving band of bucket elevator with driver is commonly made of rubber, and it is installed below or above the drive roller and the divert roller. The chain-drive bucket elevator is generally equipped with two parallel transmission chains, above or below which is a drive sprocket and a divert sprocket. Continuous chain or belt bucket elevator for cement is generally equipped with chassis to prevent the dust flying into the bucket elevator.
TH series bucket elevator is widely used for transporting material, the density is less than 1.5t/m3, easy to draw out powder, granular, block etc low grinding material. Round link chain bucket elevators are the preferred conveying systems for the transport of hot bulk materials and coarse-grained materials. Such as coal, cement, gravel, sand, fertilizer, grain etc.

Advantages and Features
1. Excellent sealing, less environmental pollution
2. Easy Operation and maintenance, less wearing parts
3. Energy conservation and less maintenance ensure the machine a very low cost
4. Advanced design principle has ensured the reliability of machine operation
5. High accuracy. The housing case is of good rigidity and beautiful appearance by the edge folding and intermediate beading
6. Small size ,high lifting height and large capacity

Selection Conditions

♦Material to be processed: _____ ♦Material is corrosive or not: ____ (Ps. Yes or No)
♦Handling capacity (Ps. It means the total ♦Working environment is indoor or outdoor:________
material capacity feeding from the inlet): _____t/h ♦Material is liquid or not:___________(Ps. Yes or No)
♦Bulk Density: _____t/m3 ♦Working environment temperature: _______
♦Lifting height of the elevator (distance  between ♦Upstream equipment (Ps. It means what kind of
 inlet and outlet):__________m equipment is used to feed the material): _____
♦Max. granule size of the feeding material: ____mm ♦Downstream equipment (Ps. It means what kind of
♦Percentage of Max. granule in material:_________% equipment is used to discharge the material): _____
♦Material temperature: _____; ♦Working power supply: _____V ______HZ
♦water content:____%
