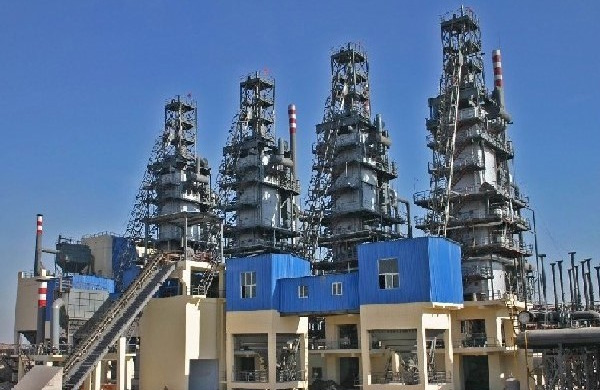

450TPD Coal for Dual Bore Lime Kiln System

belt-conveyor

In this project,2 sets of bucket elevators and 4 sets of belt conveyors were supplied by PK machinery for processing coal.Following is the detailed technical parameters and specification models of the equipment:

Sidewall belt conveyor(1 set):B=1200mm,V=1.6m/s,Q=250t/h,inclined angle is about 55°, it is used for conveying bituminous coal,the density and gradual size of which are respectively 0.9t/m3 and 0-400mm.
Belt conveyor for finished coal(2 sets):B=1000mm,V=1.25m/s,Q=250t/h,L=141m, and the resistant temperature of the belt is up to 100°.It has the dust-proof performance with the sealed cover.And the control box is also equipped.The density of the material conveyed is 0.8-1.0t/m3.
Belt conveyor for coal ash(1 set):model DTⅡA650,B=1000mm,V=1.25m/s,Q=250t/h,L=370m,and the resistant temperature of the belt is up to 180°.It has the dust-proof and water-proof performance with the sealed cover.And the control box is also equipped.The density of the material conveyed is 0.8-1.0t/m3.
Plate chain bucket elevator for raw material(1 set):modelTB-500-23,conveying capacity 100t/h,the lifting height is 23m,the speed detecting device and control box are equipped.
Plate chain bucket elevator for finished coal(1 set):modelTB-500-25.5,conveying capacity 100t/h,the lifting height is 25.5m,the control box is equipped.
