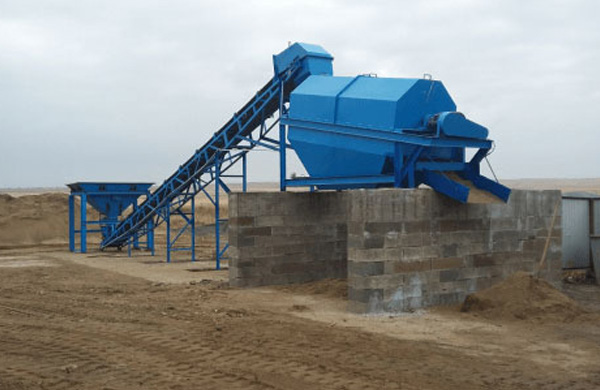

Dry sand screening system

Our client --The group of companies "vibromaster" has established itself as a reliable and responsible partner of small concrete products as a manufacturer since 2010 in the field of quality.
It is mainly dealing with building brick and curbstone production line, these machines were used for screening and conveying 8-10t/h dry sand with density of 1.4 t/m3, the working principle is as follows:
The dry sand will be transported to silo by forklift, and then the materials will be fed uniformly to 14m belt conveyor through a vibrating feeder. After that, the belt conveyor will convey the dry sand to drum screen with 1200mm diameter. The dry sand will be delivered to next production stage by forklift after the screening process.
