Shuttle Conveyor

Shuttle Conveyor

Model:
KN
Belt width:
500/650/800/1000/1200mm
Length:
6-60m(Ps:3 meters for each interval)
Belt speed:
1.0/1.25/1.6/2.0m/s
Walking speed:
0.12-0.40m/s
Capacity:
104-1683m3/h
Aimed at a prosperous growth in this domain, we are instrumental in
Product Details
Characteristics
Selection Conditions
Parameters
Product Details

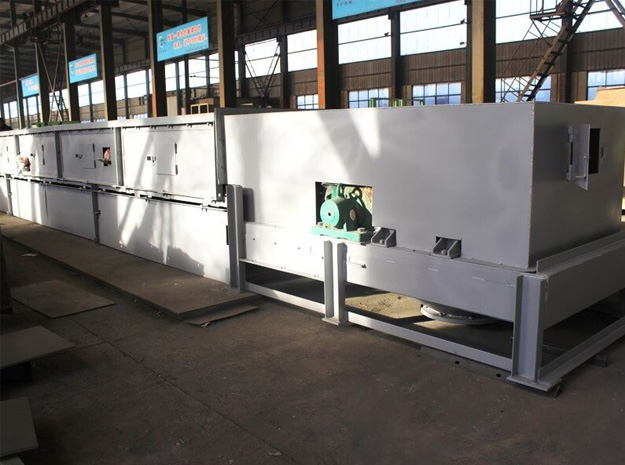

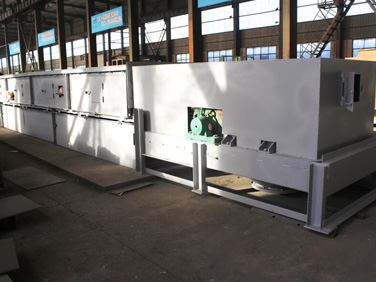

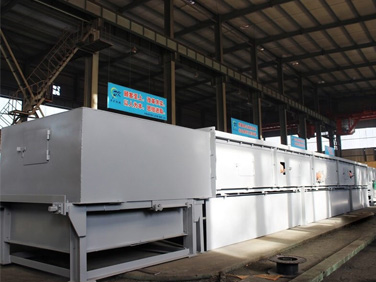

Shuttle conveyors are designed with traveling shuttle functionality. They are moved forward or backward to vary the loading or discharge points, or both. Can be used for building a stacking pile in-line and continuous, or for feeding multiple fixed discharge points. The conveyor will move along a track and convey material in both directions. It can be widely used in agriculture, power plant, raw material stocking, metallurgy industry, etc.



Characteristics
01
Reversible belt direction and there is no restrict to which end of the conveyor material can discharge from.
02
Can discharge continuously in a long distance.
03
The stationary material feed chute allows for processed material to be directed to one central location.
04
Also can be controlled from a remote location to reduce labor cost greatly.
05
Only heavy-duty, high quality drive components are used for our reversing shuttle conveyors.
06
All of the moving components, from the trolley wheels to the drive motors, have been engineered to ensure continued functionality and reliability.
07
Adopt high grade steel pulleys shafts for the pulley.
Selection Conditions
Material to be processed: _____
Bulk Density: _____t/m3
Handling capacity_____t/h
Average size of feeding material:___mm
Max. size of feeding material: _____mm
Center distance between the head and tail pulley: ___m
Walking distance: ______m
Working power supply:____V___HZ
Parameters

Belt width

(mm)

Length

(m)

Belt speed

(m/s)/

Track model

(kg/m)

Walking speed

(m/s)

Track distance

(mm)

L×W×H(m)
500 6~60 ≤2.5/18 0.294 900 3265×1130×1080
650 1060 3265×1290×1080
800 1440 3265×1670×1210
1000 6~39 1640 3420×1870×1240
42~60 3690×1870×1240
3920×1870×1240
4000×1870×1240
1200 6~30 1850 3400×2080×1400
33~60 3670×2080×1400
3900×2080×1400
4000×2080×1400
1400 6~30 2050 3390×2280×1500
33~60 3660×2280×1500
3890×2280×1500
4000×2280×1500
