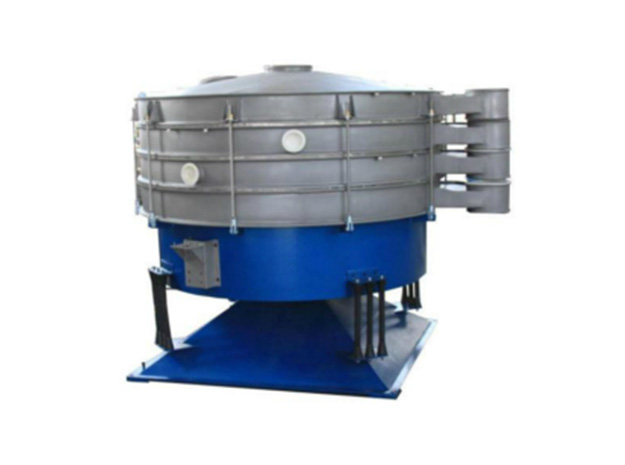

Tumbler Vibrating Screen

  • Model: YBS-800/1000/1200/1600/2000/2600
  • Screening Area: 0.45/0.68/1.10/1.80/2.90/5.30 m2
  • Layer number: 1-5
  • Power: 1.1-5.5 kW
  • Swing vibrating screen, Tumbler screen sieve, Vibrating tumbler sieve
  • Tumbler screen machine, Swing tumbler vibrating screen, round swinging sieve
  • Swing vibro sifter, Tumbler screen sieve, Swing tumbler vibrating screen
  • Rotary swing screen, Swing vibrating tumbler sieve, Vibratory tumbler shaker
  • Circular tumbler swinging sieve machinery, Tumbler screen sifter
  • Tumbler screen sifter
Introduction
YBS Tumbler vibrating screen simulates the effective principle of manual sieving movement. A round swing sieve machine specially designed to realize the large output and high-precision sieving requirements of granular materials, which can meet the customer's requirements for the efficiency and precision of the screening of granular materials.

Characteristics
1. Large effective screening area
2. High output per unit area, higher screening efficiency, up to 90% -99%
3. 6-level precise separation can be achieved, and the screening accuracy is higher
4. Adopt efficient cleaning screen device to prevent clogging of screen holes
5. With a unique structural design, it supports easy replacement of screens and reduces maintenance costs
6. Airtight dust removal, safe operation and low noise

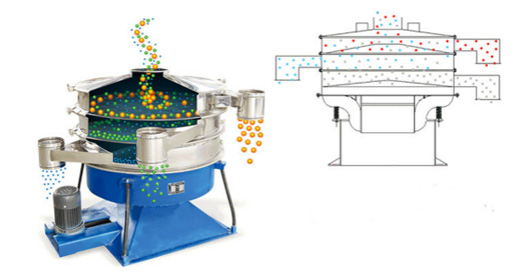

Structural principle
Simulate a similar artificial screening motion. By adjusting the eccentricity, radial and cut angles, the circular motion of the screen is combined with the parabolic motion of the upward and downward motion to establish a horizontal and throwing three-dimensional rolling motion. The materials are evenly dispersed from the center to the outer edge on the entire screen surface, so that the fine particles are propagated in the axial direction with a spiral motion, thus completing the entire screening process;
This process is repeated between each screen layer to complete the screening of materials.


Application
Chemicals, food and spices, plastics, mining, medicine, wood and plywood, metallurgy, rubber, feed, fertilizer, sugar and salt industry, recycling industry, etc.
