Plate chain bucket elevator

Plate chain bucket elevator

Model:
TB
Bucket Width:
250/315/400/500/ 630/800/1000mm
BUcket Running Speed:
0.5m/s
Traction Component:

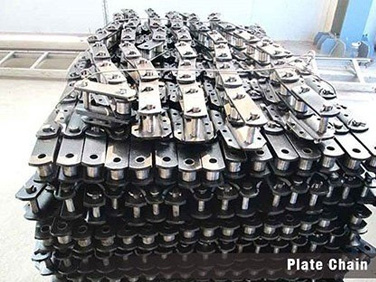

Plate sleeve roller chain
Capacity:
20-565m³/h
Max. Lifting Height:
50m
Aimed at a prosperous growth in this domain, we are instrumental in
Product Details
Characteristics
Working Principle and Application
Selection Conditions
Parameters

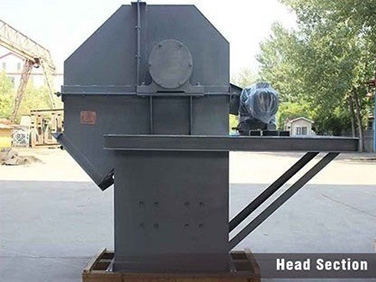

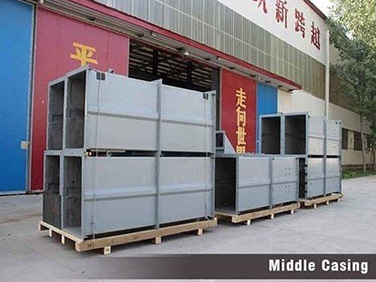

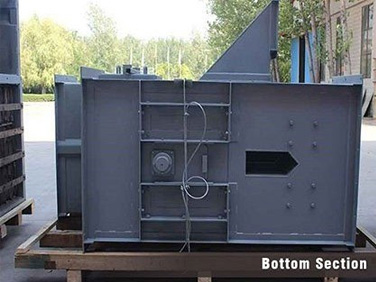

Product Details

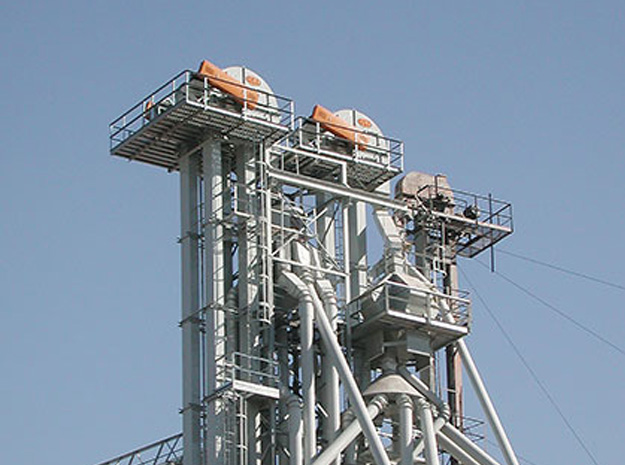

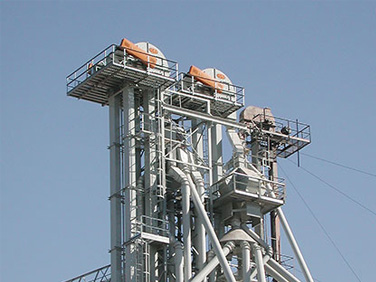

TB plate chain bucket elevator is specially designed for vertical displacement of abrasive rough materials. It adopts plate sleeve roller chain as traction component and usually be used to transport material with density not more than 2 t/m3 and temperature within 250℃.TB bucket elevator could reach a capacity of 395m3/h with a vertical displacement of 5~50m.Vertical bucket elevator is highly resistant to wear and can be placed indoor as well as outdoor.
Characteristics
01
Application widely
02
Low driving power, low energy consumption
03
The whole machine with full sealed design, no dust pollution while running
04
The machine housing case has good-looking appearance
05
Driving device configuration could save much space, light weight, with backstop, low noise, running steady
06
Four kind bucket types could meet different particle size materials
07
Customized lifting height
Working Principle and Application
Hopper scoops up materials from the stone bucket below, then is lifted to the top with the conveyor belt or chain, and next it is downward rolled over bypass the wheel on the top and the materials are dumped into the accept slot now by bucket chain or hoist conveyor, and the whole process is over. The driving band of bucket elevator with driver is commonly made of rubber, and it is installed below or above the drive roller and the divert roller. The chain-drive bucket elevator is generally equipped with two parallel transmission chains, above or below which is a drive sprocket and a divert sprocket. Continuous chain or belt bucket elevator for cement is generally equipped with chassis to prevent the dust flying into the bucket elevator.
Selection Conditions
♦Material to be processed: _____    ♦Material is sticky or not: ____ (Ps. Yes or No)
♦Handling capacity (Ps. It means the total    ♦Working environment is indoor or outdoor
material capacity feeding from the inlet): _____t/h     or indoor and outdoor: ______________
♦Bulk Density: _____t/m3    ♦Working environment temperature: ______ ℃
♦Material temperature: _____℃;    ♦Max. granule size of the feeding material: _____mm
♦water content:____%    ♦Center distance between the head and tail pulley: ___m
♦Material is corrosive or not: ____ (Ps. Yes or No)    ♦Walking distance: ______m
Parameters
Plate Chain Bucket Elevator
Model TB250 TB315 TB400 TB500 TB630 TB800 TB1000
Capacity (m³/h) 20~29 51~72 85~121 135~191 207~294 281~398 398~565
Max. Particle Size 60 60 80 100 125 125 150

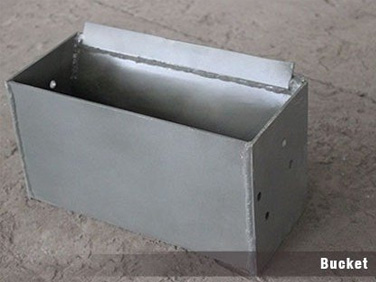

Bucket Type J T T T T T T
Bucket Volume (L) 4.7 11.8 25.3 50 96 130 232
Bucket Speed (m/s) 0.5 0.5 0.5 0.5 0.5 0.5 0.5
Plate Chain Pitch (mm) 125 125 160 200 250 250 315
Plate Chain No. 1 2 2 2 2 2 2
Max. Lifting Height (m) 50 40 40 40 40 30 30
