Rotary Vibrating Screen

Rotary Vibrating Screen

Model:
ΦXZS400/600/800/1000/1200/1500
Screening area:
0.09/0.22/0.4/0.63/0.95/1.5m2
Frequency:
1500rpm
Amplitude:
1~2mm
Capacity:
0.3~4.5m3/h
Power:
0.18/0.25/0.55/0.75/1.1/1.5kw
Aimed at a prosperous growth in this domain, we are instrumental in
Product Details
Characteristics
Principle
Application
Parameters
Product Details

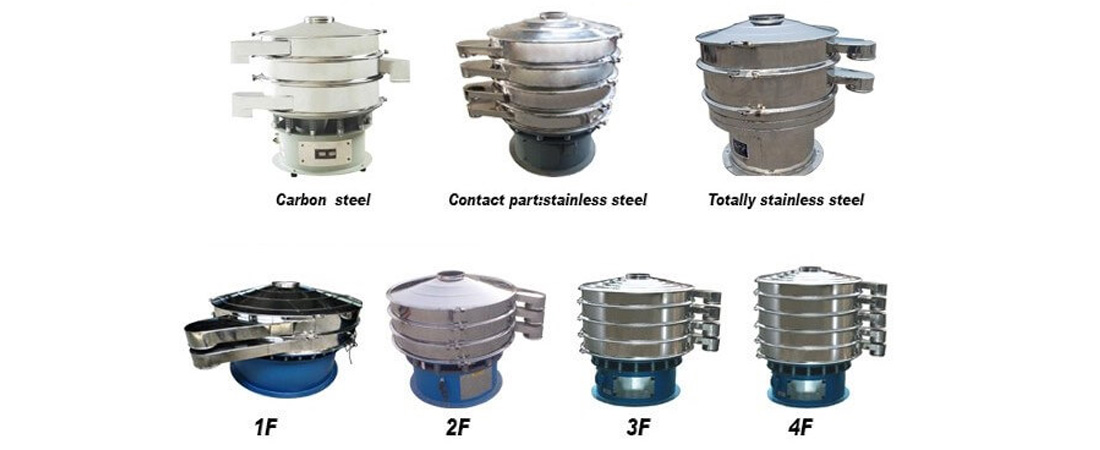

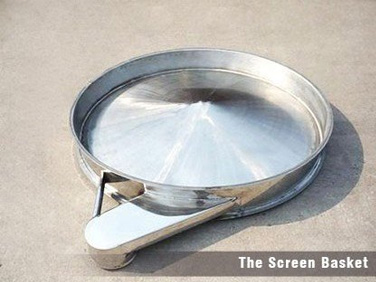

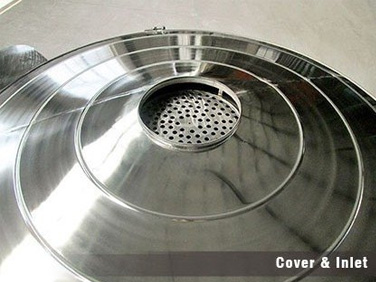

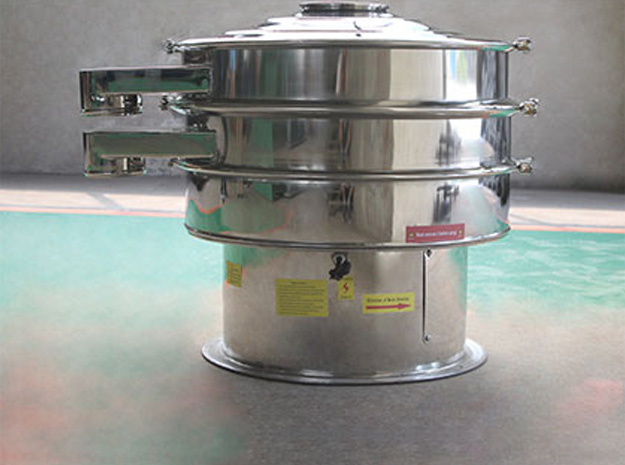

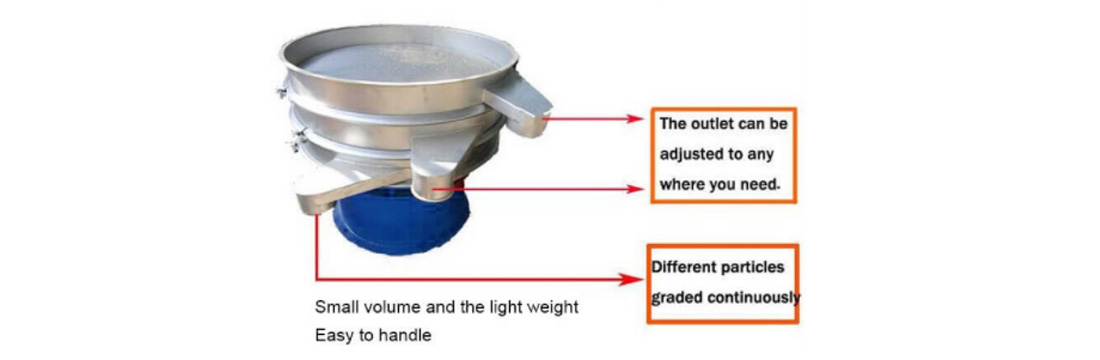

Rotary vibrating screen is designed as a high-precision screening machinery, it is composed of a upper cover, a screen box, a base and a vertical motor with eccentric weight installed at two ends. Rotary vibrating screen can be produced in horizontal, vertical, inclined motions by adjusting the upper and lower eccentric weight. Diameter also can be ranged from 400mm to 2000mm, with single or multiple screening decks, material can be total carbon steel, total stainless steel or material contact parts are stainless steel according to different product.
Characteristics
01
Various material separation range- power or particle,wet or dry, heavy or light,coarse or fine, hot or cold.
02
Various size range-available diameter from 400mm to 2000mm,mesh size can reach 500 mesh ( 0.028 mm).
03
Environmentally Friendly- Fully enclosed structure,no dust pollution,improve working conditions for operators as well.
04
Quick Screen Changes-Quick release device is provided to replace the screen with 5 minutes.
05
Automatic screen cleaning-bouncing balls keep screen openings clean and maintain a good efficiency.
06
Customized order- Rotary vibrating screen can be customized according to customer’s demand.
07
Unique design-Mature technology,compact and simple structure,convenient installation and maintenance.
08
Wide application-Rotary vibrating screen is applicable to any powder, granule, particle and mucus.
Principle

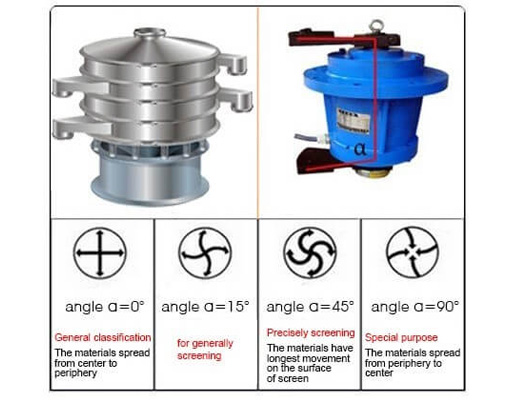

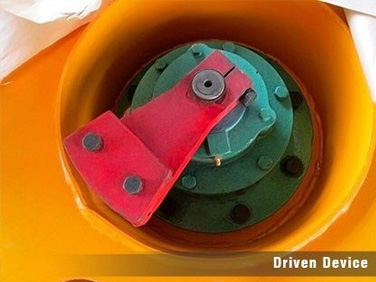

The vibration is accomplished by eccentric weights on the upper and lower ends of the motion-generator shaft. The direction of the eccentric weights can change its rotational mode,rotation of the upper weight creates vibration in the horizontal plane, which causes material to move across the screen cloth to the periphery,while the lower weight acts to tilt the machine, causing vibration in the vertical and tangential planes. The trajectories of materials on the screen can be changed by adjusting the phase angle of upper and lower weights.
Application

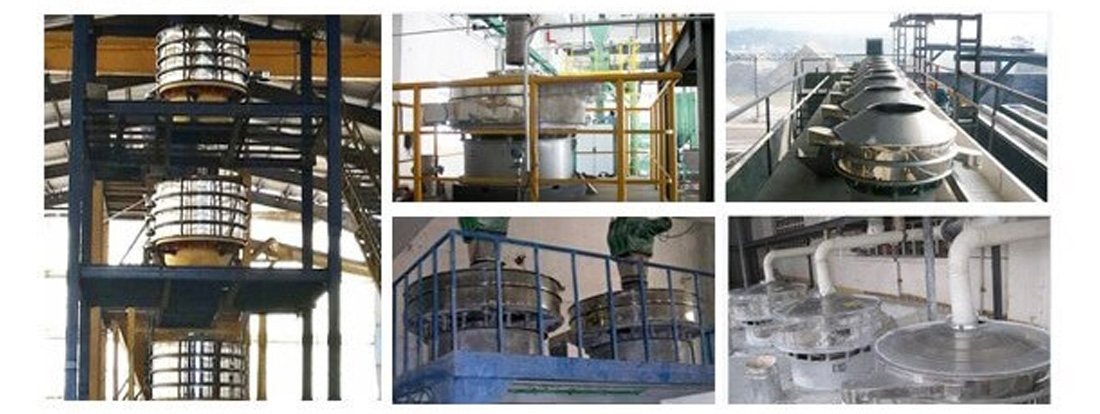

Rotary Vibrating Screen is widely used in many industries, covering food, chemical, ceramic, metallurgy, pollution treatment and so on, dealing with various kinds of materials.


Selection Conditions
♦Material to be processed: _____    ♦Max. granule size of the feeding material: _____mm
♦Handling capacity (Ps. It means the total    ♦Layer number: ______
material capacity feeding from the inlet): _____t/h    ♦Mesh size of each layer: _____mm
♦Bulk Density: _____t/m3    ♦Particle distribution percentage:____________
♦Material temperature: _____℃;    (please check the following example to help you
♦water content:____%    understand it.Supposing the layer number is 2
♦Material is corrosive or not: ____ (Ps. Yes or No)    and the aperture size of each layer is 10mm and 5mm,
♦Material is sticky or not: ____ (Ps. Yes or No)    then you will get 3 kinds of products: X,Y and Z.
♦Working environment is indoor or outdoor: _____     X≥10mm; 5mm≤ Y < 10mm; Z<5mm.
♦Working environment temperature: ______ ℃    We want to confirm the following information:
♦Upstream equipment (Ps. It means what kind of    1)The percentage of X in the whole material:_____%;
equipment is used to feed the material): _____    2)The percentage of Y in the whole material:_____%;
♦Downstream equipment (Ps. It means what kind of    3)The percentage of Z in the whole material:_____%;)
equipment is used to discharge the material): _____    ♦Working power supply: _____V ______HZ
Parameters
Model     XZ-400 XZ-600 XZ-800 XZ-1000 XZ-1200 XZ-1500
Nominal Diameter(mm) 400 600 800 1000 1200 1500
Screen Diameter (mm) 340 530 720 900 1100 1400
Screen Surface Area (m2) 0.09 0.22 0.4 0.63 0.95 1.5
Feeding Size (mm) <10 <10 <20 <20 <20 <20
Specification 2-325
No. of Layers 1-3
Frequency (rpm) 1500 1500 1500 1500 1500 1500
Power    (kW) 0.18 0.25 0.55 0.75 1.1 1.5
