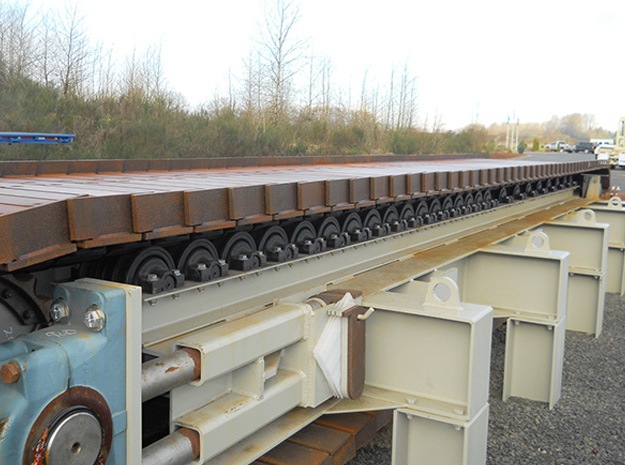

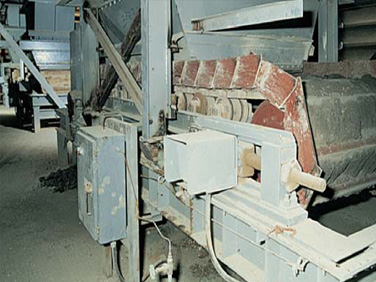

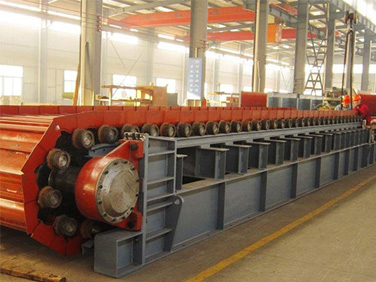

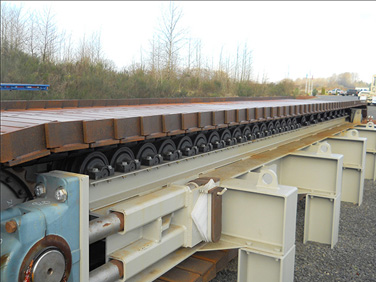

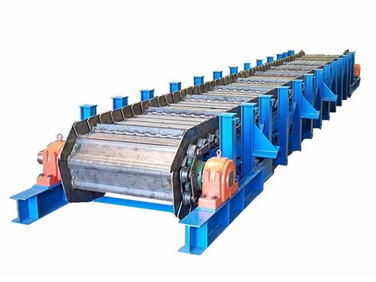

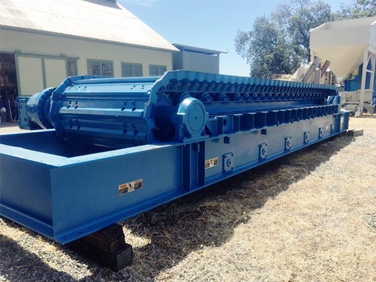

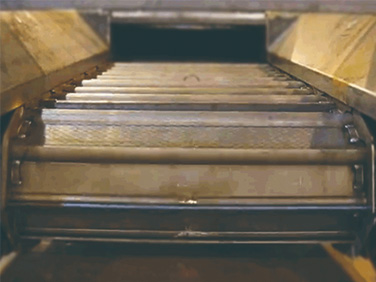

Pan conveyor

Model:

BL type

Plate Width：

500/630/800/1000/1200 mm

Max. Capacity：

450~1750 m³/h

Speed：

0.05~1.0 m/s

Chain Pitch：

200/250/320 mm

Aimed at a prosperous growth in this domain, we are instrumental in

Email: info@pkmachinery.com Get Latest Price

Product Details

Characteristics

Parameters

Product Details

Pan conveyor is a conveying device which using a chain that in cyclical operation as traction member and chain plate as carrier member.
Apron conveyor has been widely used in metallurgy, coal, chemical, electric power, machinery manufacturing and other industrial sectors of the national economy. It can transport a variety of bulk materials and packed articles in a horizontal or inclined direction; it can also be used to transport parts in a production line. Since its load-bearing part and running part are made of metal material, it can transport heavy, coarse-grained, abrasive materials or parts compared to other continuous transport machines, and can transport 600 -700°C high temperature materials or parts.

Characteristics

Wide range of applications. In addition to materials with a particularly high viscosity, generally solid materials and components can be transported.

Large capacity.

The traction chain has high strength and can be used for long distance transportation.

The conveyor line is flexible. It can be transported under conditions of large inclination and small bending radius, the inclination angle can reach 30°-35°, and the bending radius is generally about 5-8m.

It can execute processing technique tasks such as sorting, drying, cooling or assembly during transportation.

Smooth and reliable operation.

Parameters

1. Main technical parameter list of BL type

Type	Width of Working Plate, mm	Max. Capacity, m³/h	Particle Size, mm	Speed, m/s	Conveying Chain Pitch, mm
Light-type	400	450	130	0.05-1.6	200
	500	700	150
	630	1150	200
	800	1850	280		250
Heavy-duty	800	900	300	0.05-1.0	250
	1000	1400	400		250
	1200	1750	500		320

2. Main technical parameter list of ZLBJ type

Model	Width of Working Plate, mm	Max. Capacity, m³/h	Max. Particle Size, mm	Speed, m/s	Conveying Chain Pitch, mm
ZLBJ-1000	1000	150	300300400	0.05-0.25 Adjustable	160
ZLBJ-1200	1200	200	400400800		160
ZLBJ-1500	1500	350	5005001200		200
ZLBJ-1800	1800	650	8008001400		200
ZLBJ-2500	2500	950	100010002000		250

Note: All the parameters are for reference only, we can design and manufacture as per your requirements.
