Silo bucket elevator

Silo bucket elevator

Model:
TZD
Bucket Width:
200/250/300/400/ 500/650/800/1000mm
Bucket Running Speed:
1.70/2.00/2.75/3.00m/s
Traction Component:
Conveyor belt
Capacity:
10-850m³/h
Max. Lifting height:
52m
Aimed at a prosperous growth in this domain, we are instrumental in
Product Details
Characteristics
Selection Conditions
Parameters
Product Details

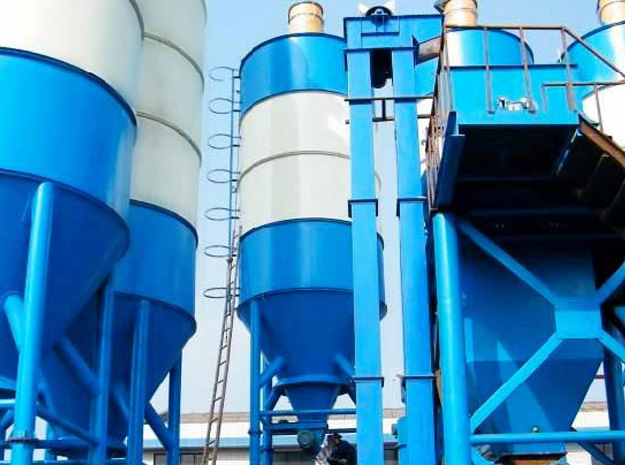

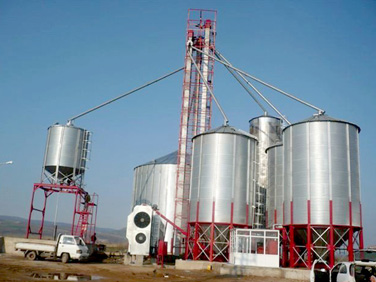

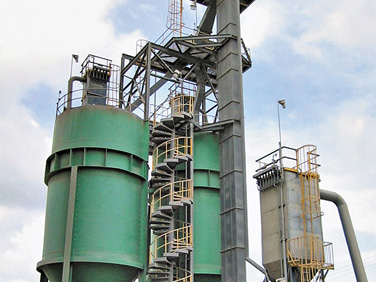

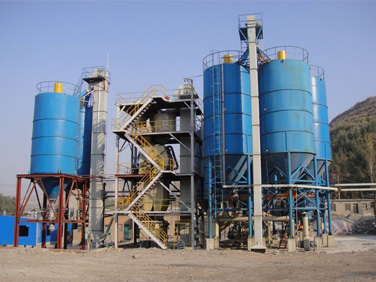

Silo bucket elevator is specially designed to associated with silo which is applicable to lift material in small size and density. Steel or plastic buckets are optional when you purchase,rubber belt or chain type bucket elevator are optional when PK engineers configure the proper model.Meanwhile,silo bucket elevator is totally enclosed type to prevent dust flying.Silo bucket elevator is widely used for conveying powder, granular and non-small-block mill and grinding of small materials, such as coal, cement, stones, sand, clay, ore and so on.
Characteristics
01
Superior design-Low power required, effective inflow feeding & guiding discharge, steady operation,compact structure.
02
Vast range of application- Almost no limitation for lifting material forms and properties.
03
Free from pollution- Good sealing condition could effectively reduce the environmental pollution.
04
Advanced technology-Excellent design & reliable manufacturing way has greatly ensured the overall machine.
05
Designed to fit your operation-Silo bucket elevator can be customized to meet different capacity and working site.
06
Customized driving unit-Domestic or Imported brand can be chosen as per client’s requirement.
Selection Conditions
♦Material to be processed: _____    ♦Material is corrosive or not: ____ (Ps. Yes or No)
♦Handling capacity (Ps. It means the total    ♦Working environment is indoor or outdoor:________
material capacity feeding from the inlet): _____t/h    ♦Material is liquid or not:___________(Ps. Yes or No)
♦Bulk Density: _____t/m3    ♦Working environment temperature: _______ ℃
♦Lifting height of the elevator (distance  between    ♦Upstream equipment (Ps. It means what kind of
 inlet and outlet):__________m    equipment is used to feed the material): _____
♦Max. granule size of the feeding material: ____mm    ♦Downstream equipment (Ps. It means what kind of
♦Percentage of Max. granule in material:_________%    equipment is used to discharge the material): _____
♦Material temperature: _____℃;    ♦Working power supply: _____V ______HZ
♦water content:____%
Parameters
Silo Bucket Elevator
Model Belt Width mm Head Pulley Dia. mm Tail Pulley   Dia. mm Bucket Speed m/s Head Shaft Rotation Speed r/min Steel Bucket Volume L Steel Bucket Pitch mm Steel Bucket Capacity t/h Plastic Bucket Volume L Plastic Bucket Pitch mm Plastic Bucket Capacity t/h
TZD200 200 630 500 1.76 53.5 1.21 300 10 1.21 300 10
1.76 53.5 150 20 150 20
2 60 125 30 125 30
2.75 83.3 105 50 105 50
TZD250 250 630 500 1.76 53.3 2.35 150 30 2.35 150 30
1.76 53.3 125 50 125 50
2.42 73.5 125 80 125 80
3 91.9 125 100 125 100
TZD300 300 710 565 1.93 52.5 6 215 80 3.1 145 50
2.2 60 215 100 145 80
3.05 82.2 215 150 145 100
TZD400 400 710 565 1.93 52.5 8.4 215 100 6.1 195 80
2.2 60 215 150 195 100
3.05 82.2 215 200 195 150
TZD500 500 800 655 1.97 47 10.9 215 150 11.5 255 100
2.2 52.8 215 200 255 150
3.1 74 215 300 255 200
TZD650 650 800 655 2.2 52.8 2X6 215 200 2X3.1 145 150
2.76 66 215 300 145 200
3.87 92.5 215 400 145 300
TZD800 800 1140 930 2.5 41.6 2X8.4 215 400 2X6.1 195 200
3.15 52.5 215 500 195 300
3.94 66 215 600 195 400
