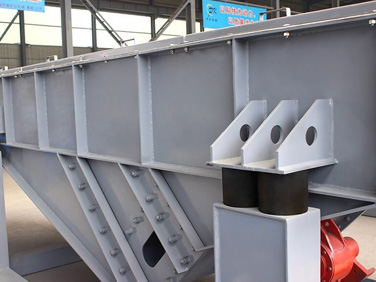

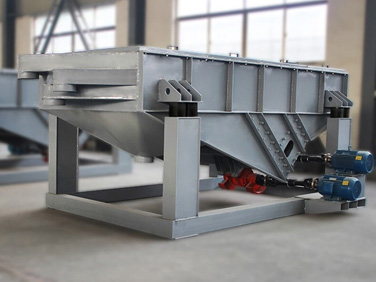

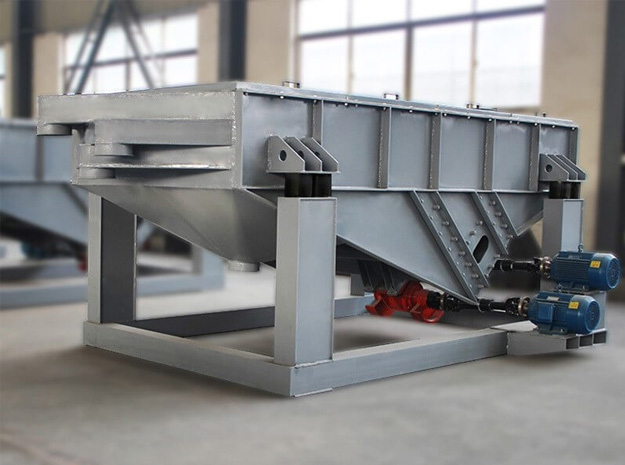

Linear Vibrating Screen

  • Model: ZS1020
  • Screening area: 1.00~6.48m2
  • Frequency: 960rpm
  • Amplitude: 3~5mm
  • Capacity: 3~120m3/h
  • Power: 0.37*2~7.5*2(kw)
  • Linear vibrating screen manufacturer
  • Linear vibrating screen supplier
  • Linear vibrating screen components
  • Linear vibrating screen
  • Linear vibrating screen
  • Linear vibrating screen for sale

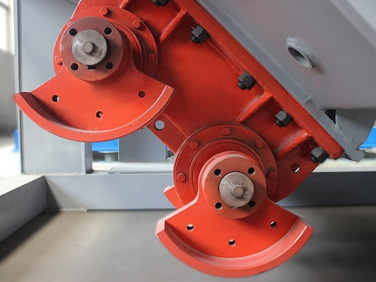

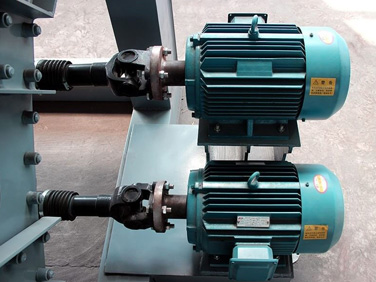

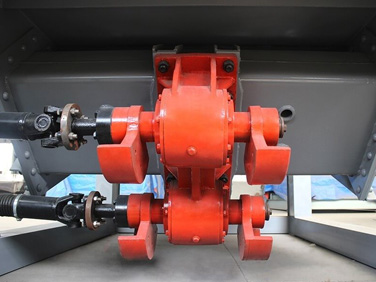

Linear vibrating screen is designed with dual-vibration motor drive,two synchronous motors are reversely placed so that the exciter generate reverse excitation force, the exciting force generated by eccentric block cancel each other out on the parallel direction of motor axis,and stack together with the perpendicular direction of motor axis, so its trajectory is linear.Linear vibrating screen is suitable for particle size from 0.074 -5 mm,the maximum size should be less than 10mm.

Working Principle and Application

Linear vibrating screen is widely used in mining, coal, refractories, metallurgy, building materials and other industries.It is usually used for the screening and grading materials in large, middle and small particles.

Advantages and Feathers

1.Less energy consumption,lower noise,longer service life
2.The beam and screen box are connected by high strength blot without welding
3.High accuracy screening efficiency,simple and stable structure, convenient maintenance
4.Suitable for rough screening with high capacity
5.Long travel distance for materials on the screen surface, high screening efficiency

Related Products

Sidewall Belt ConveyorPortable Belt Conveyor

                Trommel Screen                                  Circular Vibrating Screen

Shuttle ConveyorTripper

                  Gyratory Screen                                 Rotary Vibrating Screen

Selection Conditions
♦Material to be processed: _____ ♦Max. granule size of the feeding material: _____mm
♦Handling capacity (Ps. It means the total ♦Layer number: ______
material capacity feeding from the inlet): _____t/h ♦Mesh size of each layer: _____mm
♦Bulk Density: _____t/m3 ♦Particle distribution percentage:____________
♦Material temperature: _____; (please check the following example to help you
♦water content:____% understand it.Supposing the layer number is 2
♦Material is corrosive or not: ____ (Ps. Yes or No) and the aperture size of each layer is 10mm and 5mm,
♦Material is sticky or not: ____ (Ps. Yes or No) then you will get 3 kinds of products: X,Y and Z.
♦Working environment is indoor or outdoor: _____  X10mm; 5mm Y < 10mm; Z<5mm.
♦Working environment temperature: ______ We want to confirm the following information:
♦Upstream equipment (Ps. It means what kind of 1)The percentage of X in the whole material:_____%;
equipment is used to feed the material): _____ 2)The percentage of Y in the whole material:_____%;
♦Downstream equipment (Ps. It means what kind of 3)The percentage of Z in the whole material:_____%;)
equipment is used to discharge the material): _____ ♦Working power supply: _____V ______HZ
