Ultrasonic vibrating screen

Ultrasonic vibrating screen

Model:
ΦCZS400/600/800/1000/1200/1500
Screening area:
0.09/0.22/0.4/0.63/0.95/1.5m2
Frequency:
1500rpm
Amplitude:
1~2mm
Capacity:
0.3~4.5m3/h
Power:
0.18/0.25/0.55/0.75/1.1/1.5kw
Aimed at a prosperous growth in this domain, we are instrumental in
Product Details
Characteristics
Principle
Selection Conditions
Parameters
Product Details

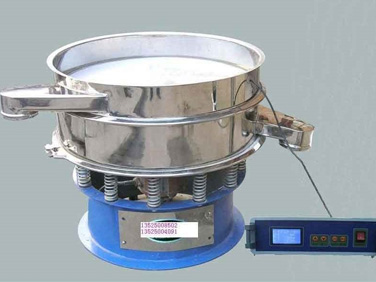

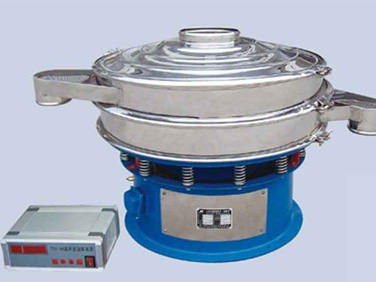

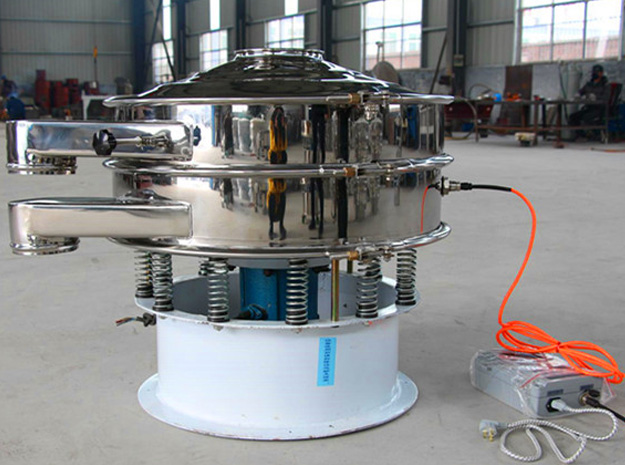

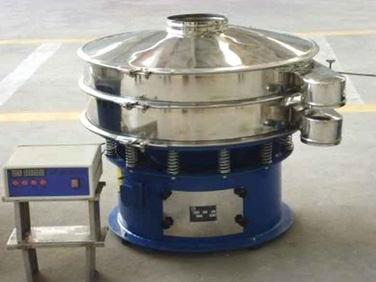

Ultrasonic vibrating screen is the rotary vibration screen installed ultrasonic system and it is a high-precision ultra fine powder screening machine. It is consist of upper cover, screen frame with ultrasonic, base, vertical motor and ultrasonic generator etc. Diameter can be ranged from 400mm to 2000mm and with single or multiple screening layers.Ultrasonic vibration screen solve a series of screening problems, including adsorption, reunite, static, precision, density, light weight and other screening problems, which makes the separation of ultra fine powder easier.
Characteristics
01
Prolonged mesh life by reducing screen overload and frequency of mesh cleaning.
02
More efficient sieving capacities which could ensure the quality of final product.
03
Screen surface could achieve maximum utilization, maximizing the productivity.
04
Easy to install and maintain.
05
More efficient reducing the blockages for mesh.
06
Without pollution to the material which produced by the bouncing ball.
07
Resolve adhesive material and reduce the oversize screening material.
08
One intelligent ultrasonic generator can applied for single or multiple layers.
Principle

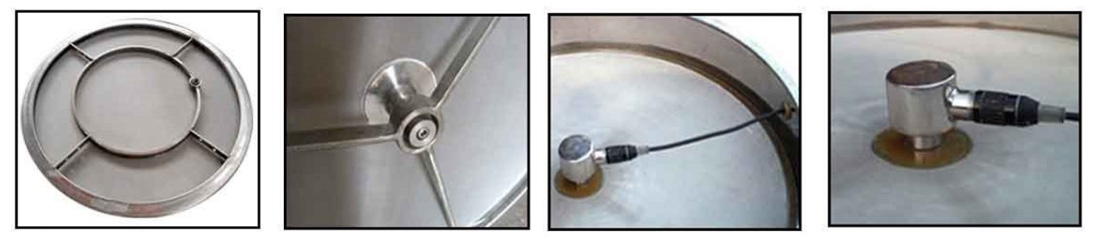

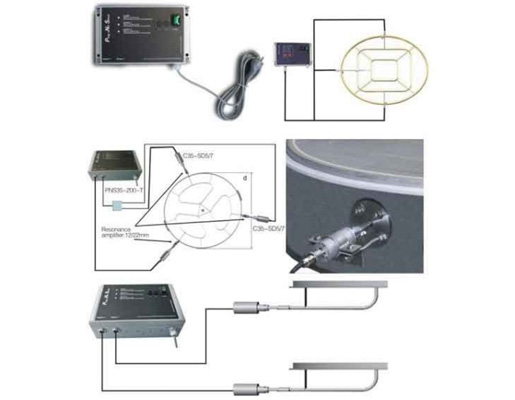

Ultrasonic vibrating screen can convert the 220V,50HZ or 110V,60HZ electric energy to 18KHZ high frequency electric energy, then, convert it to mechanical vibration of 18KHZ through ultrasonic generator and transmit to the screen mesh. The super-fine powder on the screen mesh will get greater ultrasonic acceleration and avoid a series of screen mesh blocking factors.
Selection Conditions
♦Material to be processed: _____    ♦Max. granule size of the feeding material: _____mm
♦Handling capacity (Ps. It means the total    ♦Layer number: ______
material capacity feeding from the inlet): _____t/h    ♦Mesh size of each layer: _____mm
♦Bulk Density: _____t/m3    ♦Particle distribution percentage:____________
♦Material temperature: _____℃;    (please check the following example to help you
♦water content:____%    understand it.Supposing the layer number is 2
♦Material is corrosive or not: ____ (Ps. Yes or No)    and the aperture size of each layer is 10mm and 5mm,
♦Material is sticky or not: ____ (Ps. Yes or No)    then you will get 3 kinds of products: X,Y and Z.
♦Working environment is indoor or outdoor: _____     X≥10mm; 5mm≤ Y < 10mm; Z<5mm.
♦Working environment temperature: ______ ℃    We want to confirm the following information:
♦Upstream equipment (Ps. It means what kind of    1)The percentage of X in the whole material:_____%;
equipment is used to feed the material): _____    2)The percentage of Y in the whole material:_____%;
♦Downstream equipment (Ps. It means what kind of    3)The percentage of Z in the whole material:_____%;)
equipment is used to discharge the material): _____    ♦Working power supply: _____V ______HZ
Parameters
Model     CZS-400 CZS-600 CZS-800 CZS-1000 CZS-1200 CZS-1500
Nominal Diameter(mm) 400 600 800 1000 1200 1500
Screen Diameter (mm) 340 530 720 900 1100 1400
Screen Surface Area (m2) 0.09 0.22 0.4 0.63 0.95 1.5
Feeding Size (mm) <10 <10 <20 <20 <20 <20
Specification 2-325
No. of Layers 1-3
Frequency (rpm) 1500 1500 1500 1500 1500 1500
Power    (kW) 0.18 0.25 0.55 0.75 1.1 1.5
