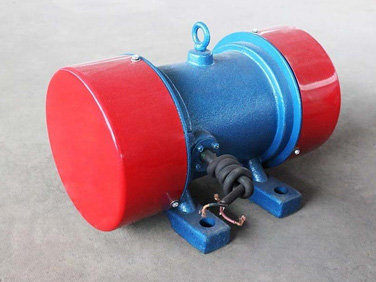

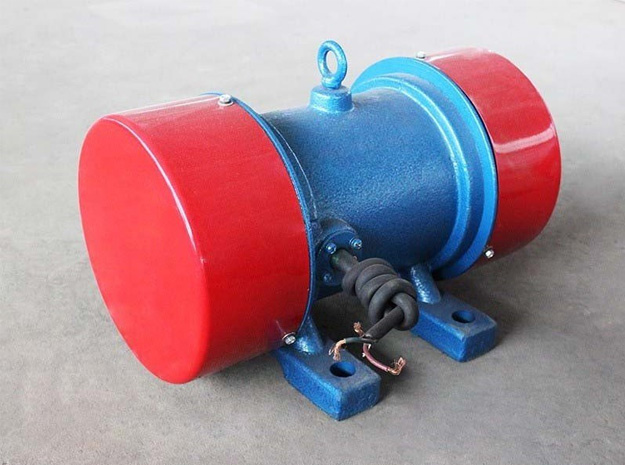

Vibration Motor

Vibration Motor

Model:
XV1.5-2~XV7.5-6
Exciting force:
1.5/2.5/5/8/16/20/30/50/75kn
Rotating speed:
3000/1500/1000rpm
Power:
1.5~5.5kw
Installation method:
horizontally-mounted
Weight:
19~370kg
Aimed at a prosperous growth in this domain, we are instrumental in
Product Details
Characteristics
Selection Conditions
Parameters
Product Details

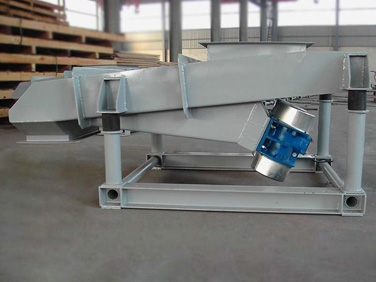

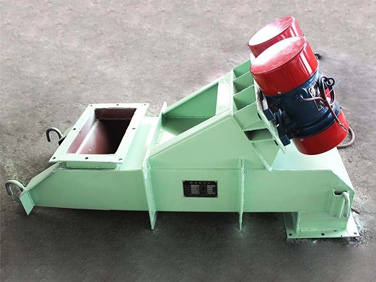

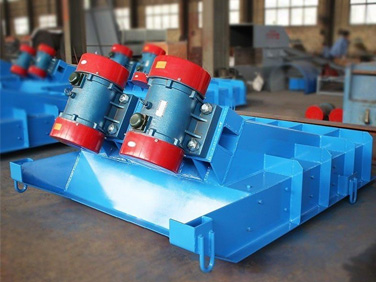

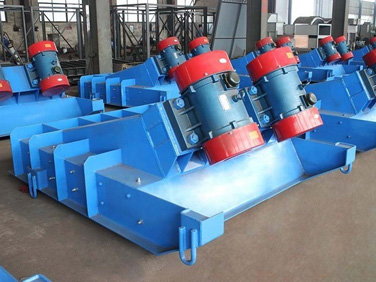

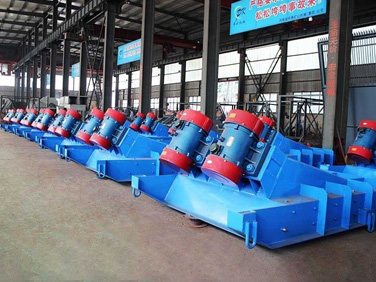

Vibration motor is equipped with a set of adjustable eccentric blocks at both ends of the rotor shaft,utilizing the centrifugal force generated by the high-speed rotation of the shaft and the eccentric block,thus the exciting force is obtained.It offer exciting vibration source for all kinds of vibrating machines such as vibrating screen, vibrating feeder, vibrating conveyor, vibrating flask shaker, vibrating crusher, vibrating molding machine, vibrating sand mixer, vibrating buffing machine, vibrating test-bed, etc.in power plant, building materials, grain, coal, mine, metallurgy, chemical industry, light industry, casting, railway, port and other industries.
IP Grade
IP (INGRESS PROTECTION) grade system is drafted by IEC (INTERNATIONAL ELECTROTECHNICAL COMMISSION ).IP grade is composed of two numbers, the first number represents for anti-invasion grade of external objects and dust, the second number shows the sealing degree of anti- invasion of moisture and water, if the number is greater, the degree of protection will be higher.
Characteristics
01
Joint utilization of motors can be adopted to the synchronization of complete and different technological requirements.
02
The exciting force direction can be changed according to the installation of vibration motor.
03
Exciting force can be adjusted continuously by changing the angle of the eccentric block.
04
Fully enclosed structure,dust-proof and water-proof,it can work under high requirement environment.
05
Large vibration force, light body weight, small volume,low mechanical noise,stable vibrating frequency.
06
Vibration frequency and amplitude can be customized according to different uses.
07
Complete ranges of specification to meet the needs of various types of vibration machinery.
Selection Conditions
The equipment that motor works with :______(vibrating feeder, vibrating screen, hopper wall vibrator,etc.)
Motor Power:_____kw
Insulation grade:_________
Protection level:_________
Explosion-proof is required or not:_________
Rotation speed:________rpm
Exciting force:_________KN
Working power supply: __V__HZ
Parameters
Model Excitation Force(kN) Power(kW) Electricity(A) Weight (kg)
XV-1.5-2 1.5 0.15 0.38 19
XV 2.5-2 2.5 0.25 0.58 24
XV  5-2 5 0.4 1.15 37
XV  8-2 8 0.75 1.84 53
XV 16-2 16 1.5 3.48 75
XV 2.5-4 2.5 0.25 0.58 27
XV 5-4 5 0.4 1.15 43
XV 8-4 8 0.75 1.84 61
XV 10-4 10 1 2.3 75
XV 16-4 16 1.5 3.48 107
XV 17-4 17 0.75 1.8 28
XV 20-4 20 2 4.1 135
XV 30-4 30 2.5 5.75 168
XV 50-4 50 3.7 7.4 168
XV 5-6 5 0.4 1.15 48
XV  8-6 8 0.75 1.84 65
XV 10-6 10 1 2.3 65
XV 12-6 12 1 2.1 82
XV 20-6 20 2 4.1 142
XV 30-6 30 2.5 5.75 180
XV 50-6 50 3.7 7.4 200
XV 75-6 75 5.5 11 370
