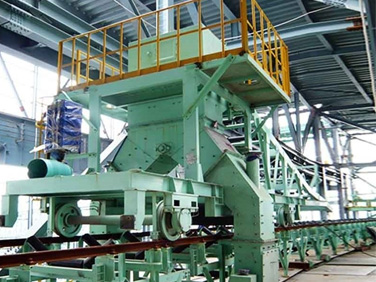

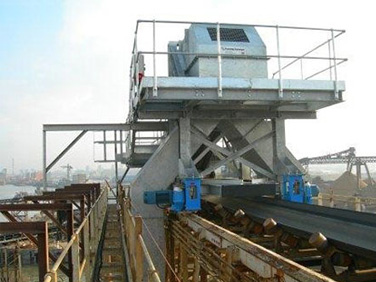

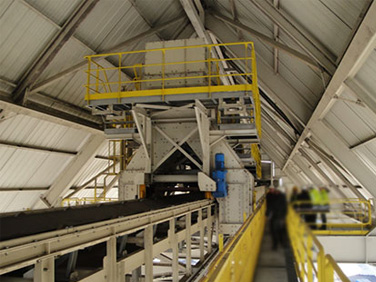

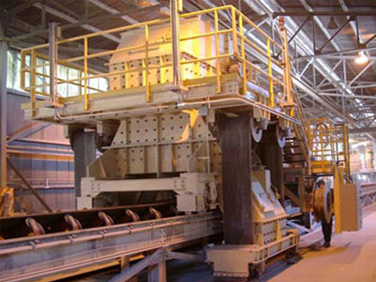

Tripper

  • Model: XLP
  • Matching Belt Width: 500/600/800/1000/1200/1400mm
  • Matching Steel Rail: 15/22kg/m
  • Walking Speed: 0.26/0.30m/s
  • Walking Power: 3/5.5kw
  • Walking Wheel Diameter: 400/500mm
  • Tripper Cars,Belt Tripper
  • movable tripper, Belt conveyor tripper
  • Tripper conveyor
  • tail
  • tripper copper mine
  • Belt conveyor tripper
Introduction
Belt conveyor trippers are used to unload the material from the belt conveyor at specified location. The belt conveyor tripper is consist of a structure with wheels and pulley assemblies. The wheels can be move along the guide rail on the belt conveyor. The belt conveyor tripper can either be in a fixed position, or travel continuously on the guide rail at a constant speed.


Advantages and Features

1.Several powered drive options and chute configurations are available.
2.Heavy duty structural frames and supports to provide system rigidity.
3.Heavy duty inlet skirting to eliminate spillage at discharge transition.
4.Abrasion resistant belting to reduce wear and increase life span.
5.Heavy duty idlers with anti-friction bearings to increase idler life and reduce horsepower.
6.High torque drive units to power through upset conditions.
7.Able be fitted to any new or existing conveyor.
8.Single and dual side discharge designs
9.Evenly distribution of materials and storage space saving
10.Engineered to meet new project requirements and also to retrofit existing conveyors.

Related Products

Sidewall Belt ConveyorPortable Belt Conveyor

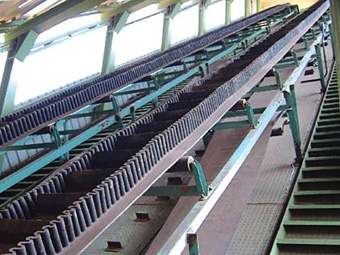

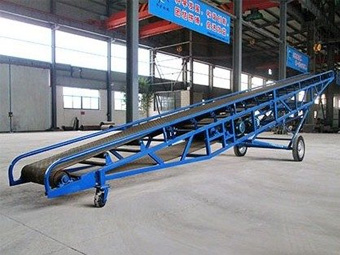

           Sidewall Belt Conveyor                           Portable Belt Conveyor


Shuttle ConveyorTripper

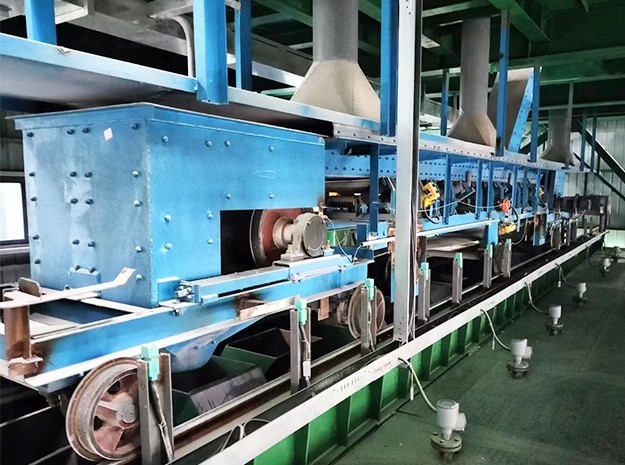

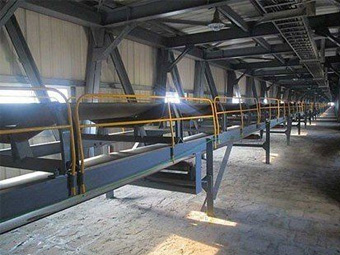

                  Shuttle Conveyor                                         Belt Conveyor

Selection conditions
♦Belt width of the belt conveyor which is coordinating ♦Material is corrosive or not: ____ (Ps. Yes or No)
 operation with the tripper: ______m ♦Material is sticky or not: ____ (Ps. Yes or No)
♦Material to be processed: _____ ♦Working environment is indoor or outdoor
♦Handling capacity (Ps. It means the total  or indoor and outdoor: ______________
material capacity feeding from the inlet): _____t/h ♦Working environment temperature: ______
♦Bulk Density: _____t/m3 ♦Max. granule size of the feeding material: _____mm
♦Material temperature: _____; ♦Walking distance: ______m
♦water content:____%
