Belt bucket elevator

  • Model : TD
  • Bucket Width: 160/250/315/400/500/630mm
  • Bucket Running Speed: 1.4/1.6/1.8m/s

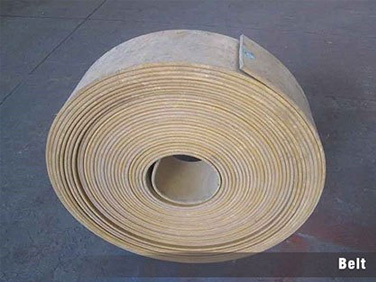

  • Traction Component: Conveyor belt
  • Capacity: 9-238m³/h
  • Max. Lifting height: 48m
  • belt bucket elevator; vertical belt bucket elevator; bucket elevator machine
  • belt bucket elevator; vertical belt bucket elevator; bucket elevator machine
  • belt bucket elevator manufacturer
  • belt bucket elevator manufacturer
  • belt bucket elevator manufacturer
Introduction
It is designed for transporting vertically for granular, powder and small block of grinding suction smaller dispersing shape material. It adopts belt as the traction component ,can reach to max.40 meters . Capacity could be approx. 4~238m3/h.

Working Principle and Application

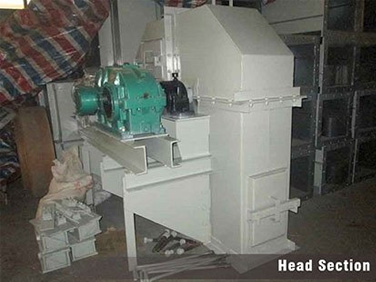

The bucket is filled with materials and is conveyed to the head terminal, and then the material is thrown from the outlet under the action of centrifugal force according to the parabolic design. The driving device drives pulley to operate the bucket belt in circular motion from bottom to up. After discharging, the empty bucket is back to the boot by conveying and be filled again, and then lifted up to do parabolic motion such repeated cycle. The material is lifted from bottom to the top to the specified height to reach conveying vertically.

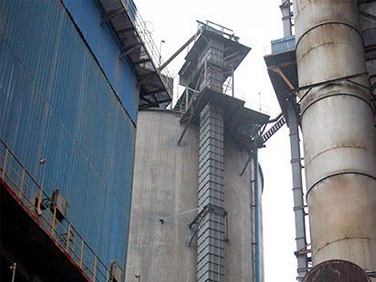

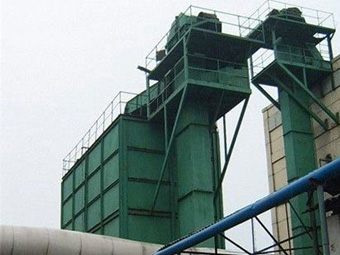

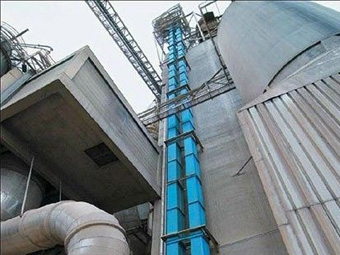

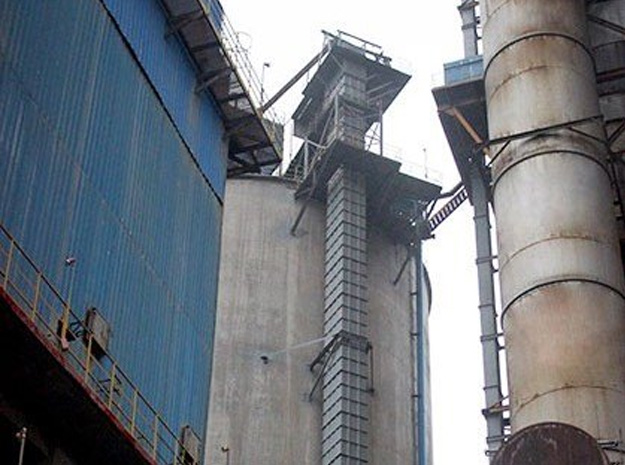

The vertical belt bucket elevator is widely used in mining , metallurgy , chemicals , power plant , agriculture and quarry etc industries for handling products such as cement, raw meal, alumina, coke, foundry sand, wood chips and other materials.

Advantages and Features
1.Smooth transmission – no impact caused due to the traction member
2.Less noise pollution – good sealing sound system
3.Greater conveying speed due to smooth transmission
4.Long life span
5.Low cost of powder materials, maintenance and spares

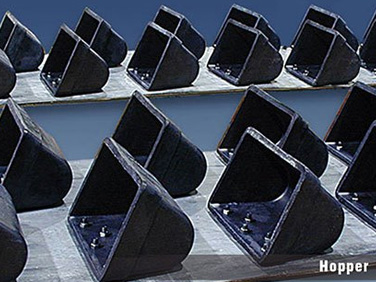

6. Use 1 to 4 rows of closely spaced heavy duty seamless steel buckets
7. Belt speed up to 2.3 m/s
8. Throughputs up to 1300 TPH

Selection Conditions

♦Material to be processed: _____ ♦Material is corrosive or not: ____ (Ps. Yes or No)
♦Handling capacity (Ps. It means the total ♦Working environment is indoor or outdoor:________
material capacity feeding from the inlet): _____t/h ♦Material is liquid or not:___________(Ps. Yes or No)
♦Bulk Density: _____t/m3 ♦Working environment temperature: _______
♦Lifting height of the elevator (distance  between ♦Upstream equipment (Ps. It means what kind of
 inlet and outlet):__________m equipment is used to feed the material): _____
♦Max. granule size of the feeding material: ____mm ♦Downstream equipment (Ps. It means what kind of
♦Percentage of Max. granule in material:_________% equipment is used to discharge the material): _____
♦Material temperature: _____; ♦Working power supply: _____V ______HZ
♦water content:____%
