Incline scraper chain conveyor

  • Model: MC
  • Trough Width: 160/200/250/320/400mm
  • Transport Speed: 0.16/0.20/0.25/0.32m/s
  • Capacity: 11~110m³/h
  • Conveying Distance: 5~35m
  • Chain Structure: DO/GO/BO
  • scraper conveyor, chain conveyor, scraper chain conveyor
  • scraper conveyor, chain conveyor, scraper chain conveyor
  • scraper conveyor, chain conveyor, scraper chain conveyor
  • scraper conveyor,manufacturer
  • scraper conveyor manufacturer
  • scraper conveyor supplier
Introduction

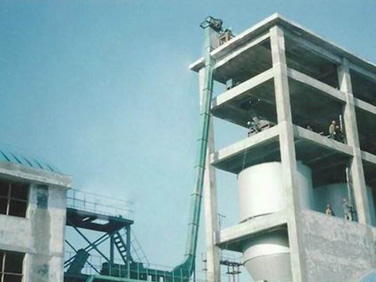

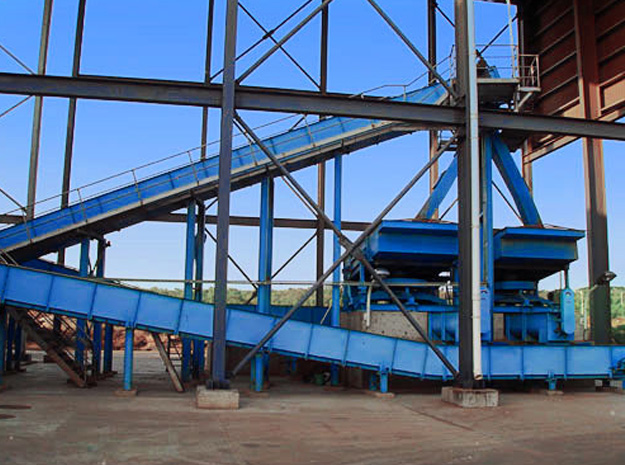

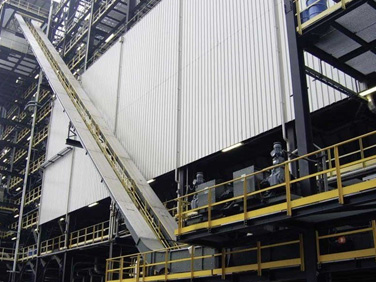

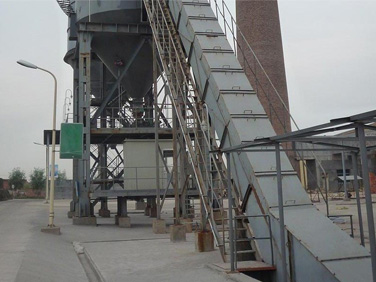

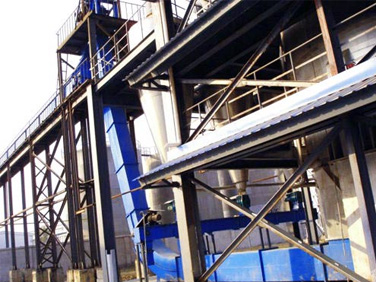

Incline scraper chain conveyor is bulk material conveying equipment, which consists of head section with driving device, connect section, tail section, tension device, as well as scraper and chains.By means of moving chains, it can continuously transport the materials in closed rectangular casing vertically or at a large incline.
The MC buried scraper conveyor is widely used in cement plant, coal, metallurgy, mining, light, construction, chemical, grain, power industries etc.

Working Principle and Application

When scraper chain conveyor machine transports material aslant, the internal friction is caused by three parts: the pressure which comes from chains in conveying direction to the materials, the action which comes from the materials themselves and the gravity of the material. This friction ensures the stable situation between material layers, and it can overcome external frictional resistance which is caused by moving materials in the trough and makes materials transport as a a whole fluid.

Advantages and Features

1.Totally enclosed structure, light weight, small volume
2.Convenient installation and maintenance
3.Vertical or large inclined transport from 30° to 90°
4.Multiple material feeding point and discharging point
5.Conveying distance is up to 40m with material temperature lower than 120℃
6.Widely used in cement plant, coal, metallurgy, mining, light, construction, chemical, grain, power industries etc.

Selection Conditions
♦Material to be processed: _____ ♦Percentage of Max. granule in material:_________%
♦Handling capacity (Ps. It means the total ♦Upstream equipment (Ps. It means what kind of
material capacity feeding from the inlet): _____t/h equipment is used to feed the material): _____
♦Bulk Density: _____t/m3 ♦Downstream equipment (Ps. It means what kind of
♦Material size:____mm equipment is used to discharge the material): _____
♦Material temperature: _______ ♦Length of horizontal section:_________m;
♦Water content:____% Length of inclined section:__________m;
♦Material is corrosive or not: ____ (Ps. Yes or No) What is the inclined degree_____°
♦Max. granule size of the feeding material: ____mm ♦Working power supply: _____V ______HZ
