Horizontal scraper chain conveyor

Model:

Trough width:

160/200/250/320/400/500mm

Transport Speed:

0.16/0.20/0.25/0.32m/s

Capacity:

15~230m³/h

Conveying Distance:

3~78m

Chain Structure:

DT/GT/BU

Aimed at a prosperous growth in this domain, we are instrumental in

Email: info@pkmachinery.com Get Latest Price

Product Details

Characteristics

Selection Conditions

Parameters

Product Details

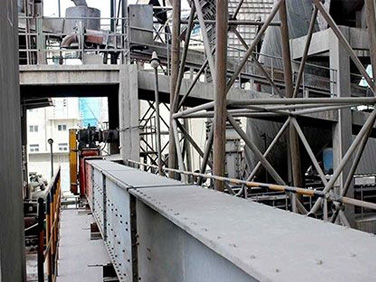

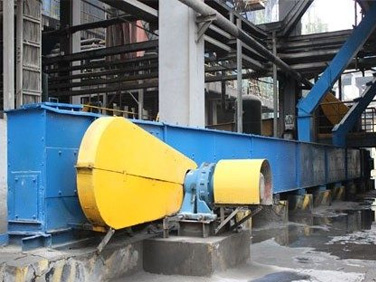

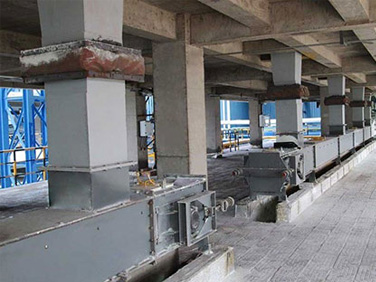

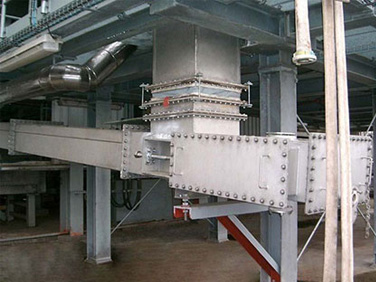

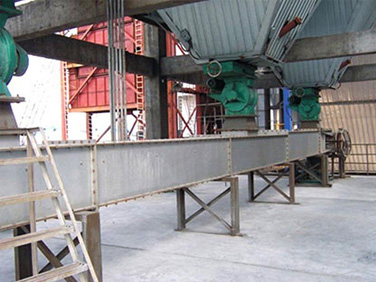

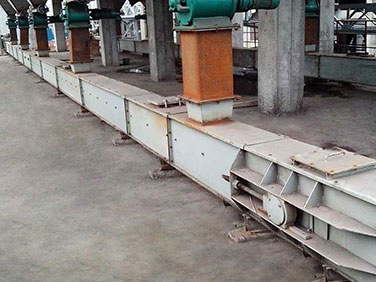

Horizontal scraper chain conveyor is bulk material conveying equipment, which consists of head section with driving device, middle casing, tail section, tension device, as well as scraper chains. MS buried scraper conveyor is widely used in cement plant, coal, metallurgy, mining, light, construction, chemical, grain, power industries etc.

Characteristics

Totally enclosed structure, without pollution, environmental friendly.

Simple structure, convenient installation and maintenance.

Horizontal or slightly inclined transport, angle can be from 0° to 30°.

Multiple material feeding point and discharging point according to requirement.

Trough width can be 160-500mm to meet different material types and capacity.

Kinds of scraper chain, to meet different types of material.

Conveying distance is up to 80m with material temperature lower than 120℃.

With screw take-up device, can take-up itself automatically, to avoid chain take off.

Reducer motor brand can be can be domestic or imported: Tailong,SEW,Siemens etc.

Can be disassemble into several sections, save space during transportation.

Selection Conditions

Material to be processed: _____
Bulk Density: _____t/m3
Material size:____mm
Handling capacity :_____t/h
Center distance from inlet to outlet:______m
Installation angle: ________°
Working power supply: _____V ______HZ

Parameters

Scraper Conveyor Technical Performance
Type		MS16	MS20	MS25	MS32	MS40
Trough Width		160	200	250	320	400
Allowed Material Density Range		0.2-2.5t/m³
Max.Conveying Distance		120m
Conveying Capacity	speed m/s	0.16	0.16	0.16	0.16	0.16
	capacity m³/h	15	23	36	59	83
	speed m/s	0.2	0.2	0.2	0.2	0.2
	capacity m³/h	18	29	45	74	104
	speed m/s	0.25	0.25	0.25	0.25	0.25
	capacity m³/h	23	36	56	92	130
	speed m/s	0.32	0.32	0.32	0.32	0.32
	capacity m³/h	29	46	72	118	166
