Circular Vibrating Screen

Circular Vibrating Screen

Model:
YK2160
Screening area:
4.32~14.4m2
Frequency:
708/755/845rpm
Amplitude:
Double Amplitude:8/11mm
Capacity:
80~1700t/h
Power:
11/15/18.5/22/30kw
Aimed at a prosperous growth in this domain, we are instrumental in
Product Details
Characteristics
Selection Conditions
Parameters
Product Details

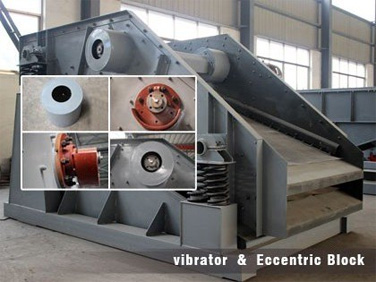

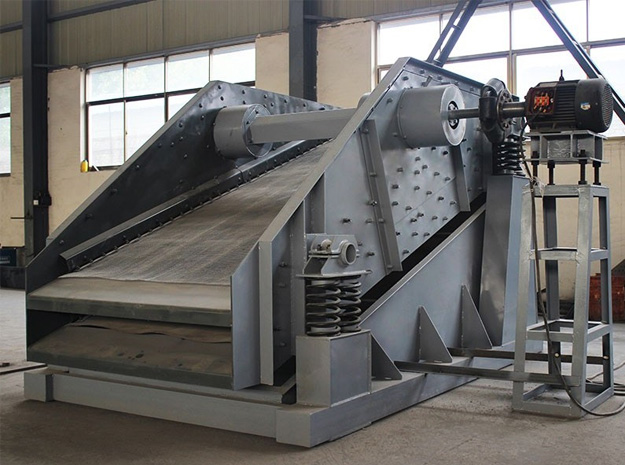

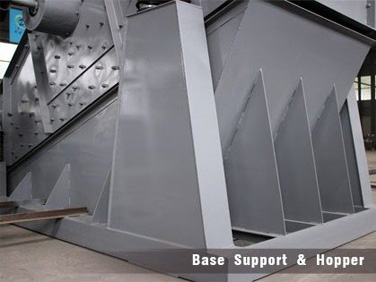

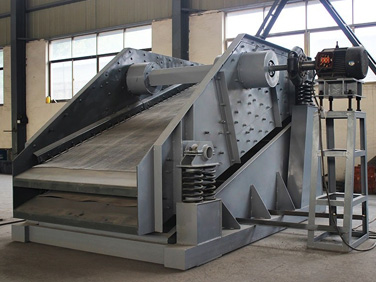

Circular Vibrating Screen is a kind of new and highly effective vibrating screen which can be designed with multiple layers. It is composed of screen box, screen mesh cloth, suspension (or support) device, bottom frame and motor. Circular vibrating sieve is available for smelting, quarry, coal preparation, ore dressing, energy, power, chemical, construction material industries.
Characteristics
01
Simple structure, easy maintenance, stale operation, high production yields;
02

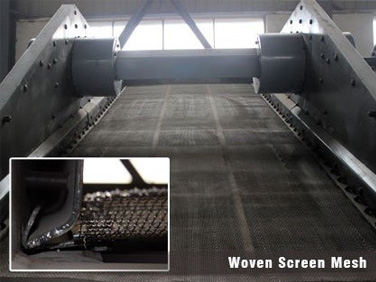

Adopt punching sieve or steel sieve mesh in order to prevent blockage;
03
Sieve beam and screen box adopts high strength bolt connection, no welding processing;
04

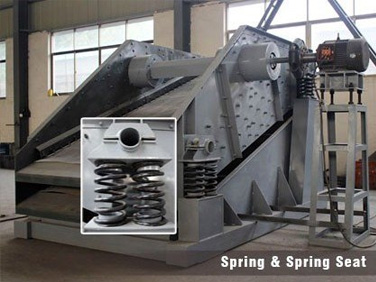

Rubber vibration spring to reduce noise pollution and provide smooth vibration operation;
05
Large dip angle structure enables high screening efficiency and handling capacity;
06
Hooked riveting with lock rivet, advanced structure; sturdy and durable.
07
Adopt special configuration, conform to personalized needs of the customer and meet the needs of different industries to achieve the best screening goal.
08

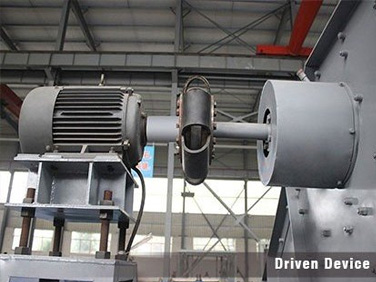

Motor brand can be domestic or imported: Yutong, Shuangyu, ABB, Siemens, WEG etc;
09
Bearing brand can be domestic or imported: C&U, LYC, HRB , WZS, FAG, NSK, SKF etc.
Selection Conditions
Material to be processed: _____
Bulk Density: _____t/m3
Handling capacity: _____ t/h
Layer number: ______
Mesh size of each layer: _____mm _____mm _____mm
Working power supply: _____V ______HZ
Parameters
  Model     Layer Screen Surface Area (m2) Angle  Aperture  Size  (mm) Material Size  (mm) Capacity (t/h) Frequency (rpm) Double Amplitude Power  kW)
YK1236 1 1200*3600  20° 6-50 ≤200 80-240 730 8-11 7.5
2YK1236 2 1200*3600  20° 6-50 ≤200 80-240 730 8-11 11
YK1530 1 1500*3000  20° 6-50 ≤200 80-240 730 8-11 11
YK1536 1 1500*3600  20° 6-50 ≤200 100-350 730 8-11 11
2YK1536 2 1500*3600  20° 6-50 ≤400 100-350 730 8-11 11
YK1542 1 1500*4200  20° 6-50 ≤200 110-385 730 8-11 11
2YK1542 2 1500*4200  20° 30-150 ≤200 110-385 730 8-11 15
YK1836 1 1800*3600  20° 30-150 ≤400 140-220 730 8-11 15
2YK1836 2 1800*3600  20° 30-150 ≤400 140-220 730 8-11 18.5
YK1842 1 1800*4200  20° 6-150 ≤400 140-490 730 8-11 15
2YK1842 2 1800*4200  20° 6-150 ≤400 140-490 730 8-11 15
YK1848 1 1800*4800  20° 6-50 ≤400 150-525 730 8-11 18.5
2YK1848 2 1800*4800  20° 6-50 ≤400 150-525 730 8-11 22
YK2148 1 2100*4800  20° 6-50 ≤400 180-630 730 8-11 18.5
2YK2148 2 2100*4800  20° 6-50 ≤400 180-630 730 8-11 22
YK2160 1 2100*6000  20° 3-80 ≤400 230-800 730 8-11 22
2YK2160 2 2100*6000  20° 6-50 ≤400 230-800 730 8-11 30
YK2460 1 2400*4800  20° 6-50 ≤400 200-700 748 8-11 30
