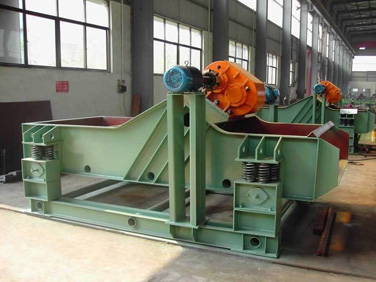

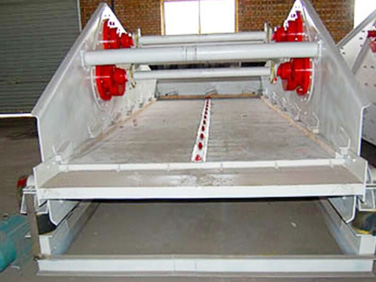

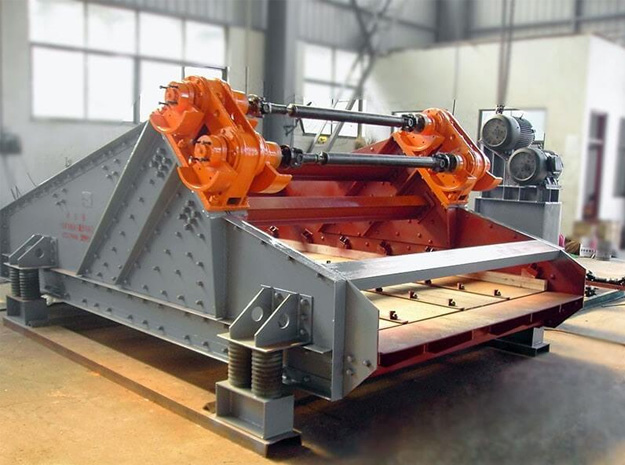

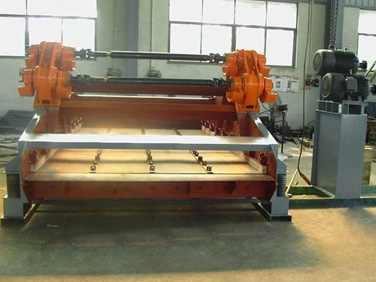

Dewatering Screen

  • Model: ZSM1856
  • Screening area: 6.3~13m2
  • Frequency: 800rpm
  • Amplitude: Double Amplitude:9~11mm
  • Capacity : 30~120t/h
  • Power: 11/15/18.5kw
  • Dewatering screen, Coal dewatering screen, dehydration screen
  • Dewatering screen, Coal dewatering screen, dehydration screen
  • Dewatering screen, Coal dewatering screen, dehydration screen
  • Dewatering screen, Coal dewatering screen, dehydration screen
Introduction
Dewatering screens have a wide variety of application including dewatering, desliming, degritting, rinsing, scrubbing and washing. It is made up of screen cloth, vibration exciter, supporting system and motor. Materials such as sand, gravel, crushed aggregates, frac sand, industrial sands, mineral sands, hard rock, precious metals, coal, iron ore, salt and other granular materials which can be processed by dewatering screens.

Working Principle and Application
To dewater material effectively, damp material is feed onto a steep, downward inclined screen surface at the feed end of the dewatering Screen to achieve rapid drainage. A pool of water begins to form in the valley as material builds up on the slightly upward inclined surface. Counter rotating motors create a linear motion, driving solids uphill, while liquid drains through the screen media. The uphill slope of the screen, along with a discharge weir, creates a deep bed that acts as a filter medium, allowing retention of material much finer than the screen openings.
When the two vibrating motor that installed vertically on the dewatering screen rotate relatively, the eccentric block of two vibrating motors produce rated excitation force. The horizontal excitation force will cancel each other out, the vertical excitation force is transported to the whole screen surface through the body mass vibration.
Dewatering screen is widely used in coal industry, ore industry, electricity industry metallurgy industry, mining industry etc.

Advantages and Features
1. Low noise, easy maintenance
2. Stable structure with strong exciting force
3. High screening efficiency and low noise pollution
4. Light weight, easy to disassemble and replace
5. Stable structure and strong exciting force

Selection Conditions
♦Material to be processed: _____ ♦Max. granule size of the feeding material: _____mm
♦Handling capacity (Ps. It means the total ♦Layer number: ______
material capacity feeding from the inlet): _____t/h ♦Mesh size of each layer: _____mm
♦Bulk Density: _____t/m3 ♦Particle distribution percentage:____________
♦Material temperature: _____; (please check the following example to help you
♦water content:____% understand it.Supposing the layer number is 2
♦Material is corrosive or not: ____ (Ps. Yes or No) and the aperture size of each layer is 10mm and 5mm,
♦Material is sticky or not: ____ (Ps. Yes or No) then you will get 3 kinds of products: X,Y and Z.
♦Working environment is indoor or outdoor: _____  X10mm; 5mm Y < 10mm; Z<5mm.
♦Working environment temperature: ______ We want to confirm the following information:
♦Upstream equipment (Ps. It means what kind of 1)The percentage of X in the whole material:_____%;
equipment is used to feed the material): _____ 2)The percentage of Y in the whole material:_____%;
♦Downstream equipment (Ps. It means what kind of 3)The percentage of Z in the whole material:_____%;)
equipment is used to discharge the material): _____ ♦Working power supply: _____V ______HZ
